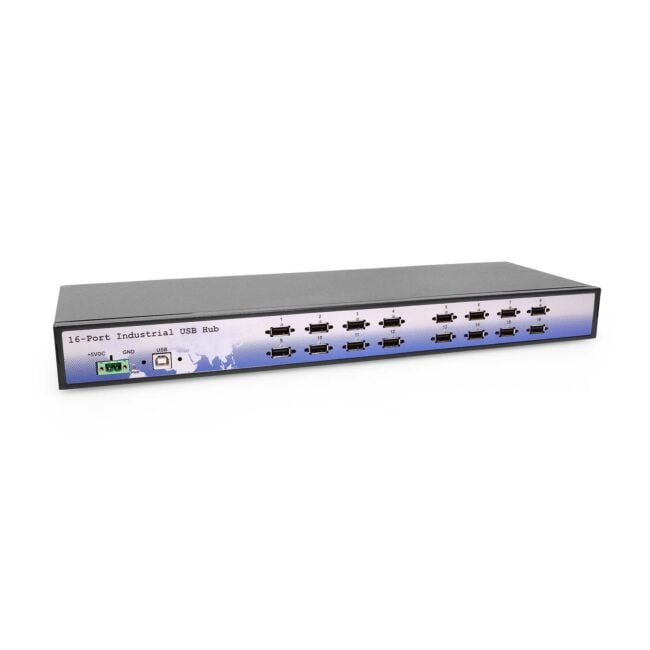

16 Port USB 2.0 Rack-Mountable Hub w/ Internal Power Supply, ESD Surge Protection, & Port Status LEDs
Part # HUB-1600i-RM
$317.90
Status: Not in stock - Backorder Allowed
Industrial Grade | +110~220V AC Input | Surge Protection | Rack Mount | DIN Rail | 480 Mbps | Screw Lock
- Protect Your Equipment: The 16-port USB 2.0 hub features 15kV ESD surge protection to keep your connected peripherals safe from harm.
- High Speeds: This USB hub is 2.0 compliant, ensuring fast 480Mbps data transfer speeds. It supports high speed and full speed which enables it to be compatible with USB 1.1.
- Superior Build Quality: Housed in a rugged steel chassis, the 16-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
- Upstream: 1 USB port, Type B connector, Screw-lock type
- Downstream: 16 USB ports, Type A connectors, Screw-lock type

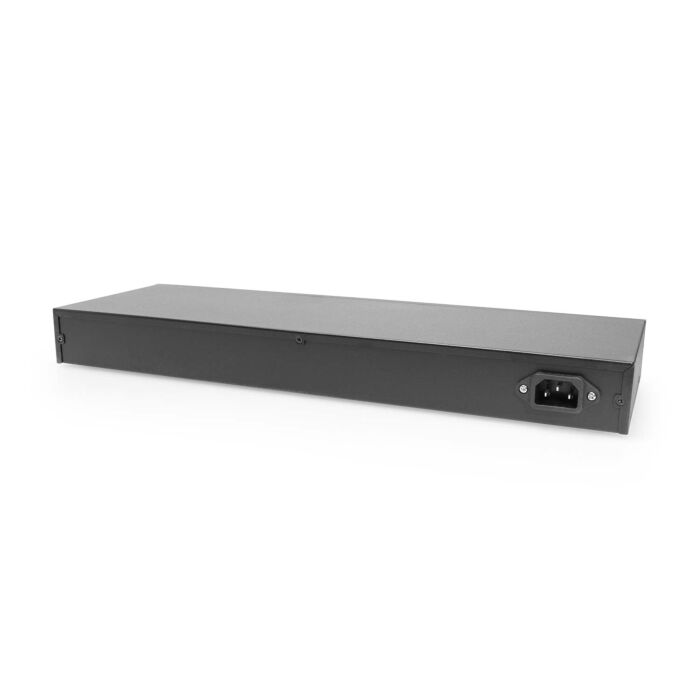

- Power Connector: 2-Pin Terminal Block, IEC C14 Connector

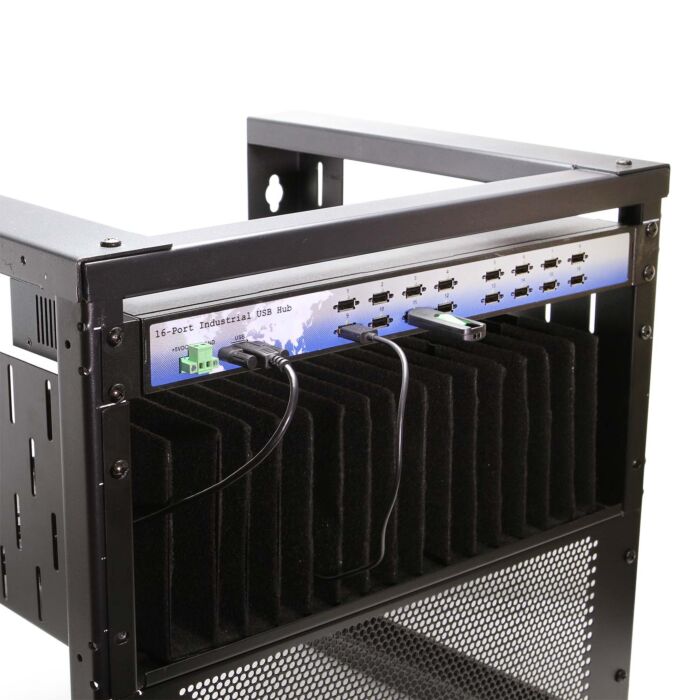

- Mounting Options: Rack, Wall, Surface, Desktop, & DIN Rail
- LED Indicators: Power & Port Status LEDs
Product Documentation & Drivers
16 Port USB 2.0 Rack-Mountable Hub w/ Internal Power Supply, ESD Surge Protection, & Port Status LEDs
Part # HUB-1600i-RM
Documentation
Introduction:

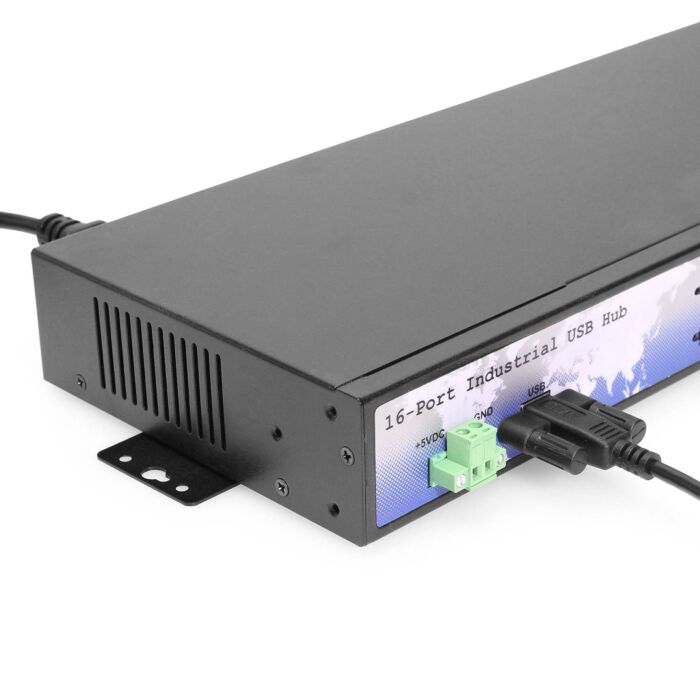

The HUB-1600i-RM Industrial 16-Port Hub is designed for the use in industrial application under tough working environments. It is housed in a DIN-rail mountable metal case with screw holes for lockable USB and power cables. Next to each USB downstream port connector are two screw-lock receptacles for lockable USB cables to add extra reliability of connection. The terminal power input connector is with two screw holes securely locking the power wires to prevent them from accidental disconnection. The Rack-Mountable Industrial 16-Port hub supports USB 2.0 full speed of 12 Mbps and USB 1.1 low speed 1.5 Mbps. It is powered by an industrial-grade switching power supply, and each downstream port provides full 500mA power to the connected USB devices. the USB HUB-1600i-RM incorporates hub chips for industrial usage with normal operation in wide ambient temperature from -40°C to 70°C operation in a harsh environment. All the USB signals are protected by 15KV ESD protection.Features & Specifications:
- Industrial-grade 16-port USB 2.0 Hub with rack-mountable metal case.
- Suitable for DIN-rail mounting.
- Common mode filtering on all data lines.
- Over-current detection and protection circuit design.
- Each downstream USB port supplies 5V 500mA power for external high-power USB devices.
- Individual port power management.
- Provided a terminal block connector to support 5V 1A power for external devices.
- Supports USB 1.1 and USB 2.0 transfer speeds (1.5 ~ 480Mbps), automatic link and speed detection.
- Plug-and-Play; no software or drivers required.
- 15KV ESD immunity for serial interface protected.
- LED for power and USB status indication.
- All USB connectors with screw holes for lock the USB cable.
- Supports wide ambient temperature operation -40°C to 70°C(-40°F to 158°F).
- CE, FCC approval.
- 110-220V AC input supported.
- Dimensions: 427mm(L) x 144mm(W) x 44mm(H)
- Hub Weight: 3.606 lbs.
OS Support:
- Windows XP, 2000, 2003, Vista, Windows 7, 8, Windows 10
- Linux and Mac OS 10.X

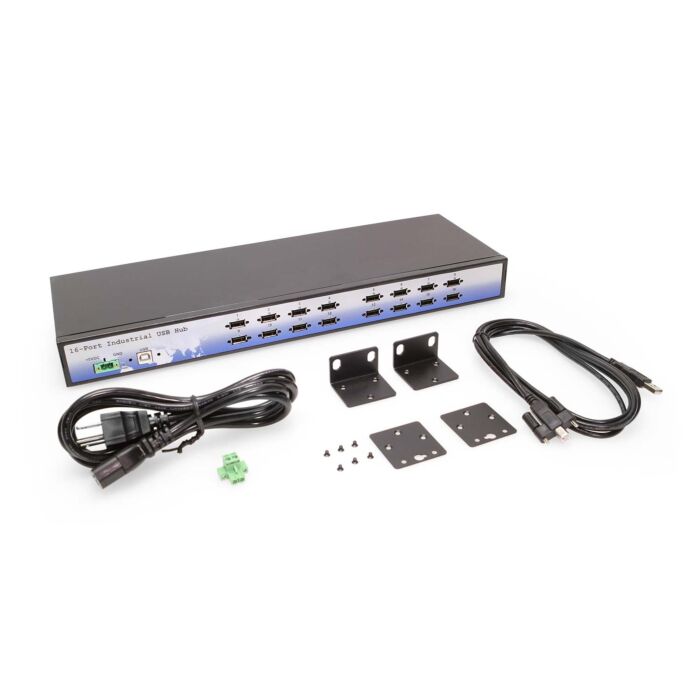

Package Contents:
- 16 Port USB 2.0 Hub
- Din Rail mounting brackets with screws
- USB A to B screw lock cable
- Rack mount brackets and screws
- AC power cord
- 2 pin Phoenix connector
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
| Manufacturer: | Coolgear | Warranty: | 1 Year | Availability: | |
| Barcode: | 729440691530 | Ship Weight: | 5.13 | Condition: | New |
| Part Number: | HUB-1600i-RM | Color: | Black | Length/Size: | -- |
| USB Spec: | USB 2.0 | Max Data Rate: | 480 Mbps | Input Voltage: | 100 ~ 240 VAC |
| Upstream Port: | USB 2.0 Type-B Female | Downstream Port(s): | 16x Type A USB 2.0 | Screw Lock Compatible: |
Yes |
Specifications
| Manufacturer: | Coolgear |
| Barcode: | 729440691530 |
| Part Number: | HUB-1600i-RM |
| Warranty: | 1 Year |
| Ship Weight: | 5.13 |
| Color: | Black |
| Availability: | |
| Condition: | New |
| USB Spec: | USB 2.0 |
| Max Data Rate: | 480 Mbps |
| Input Voltage: | 100 ~ 240 VAC |
| Upstream Port: | USB 2.0 Type-B Female |
| Downstream Port(s): | 16x Type A USB 2.0 |
| Screw Lock Compatible: |
Yes |
