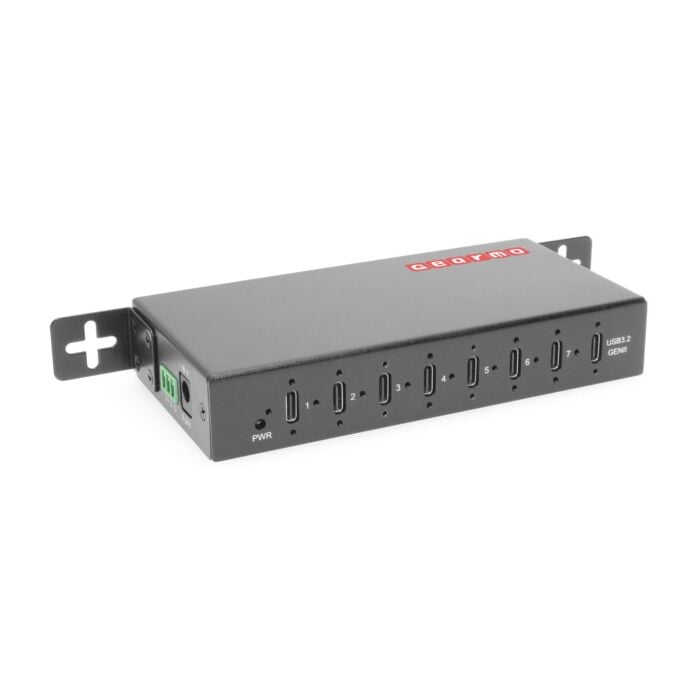

7-Port USB 3.2 Gen 2 Type-C Industrial Surface & DIN-Rail Mount Hub w/ ESD Surge Protection
Extensive Connections: Expand your host system’s peripheral capabilities with 7 USB Type-C ports with screw-locking capabilities.

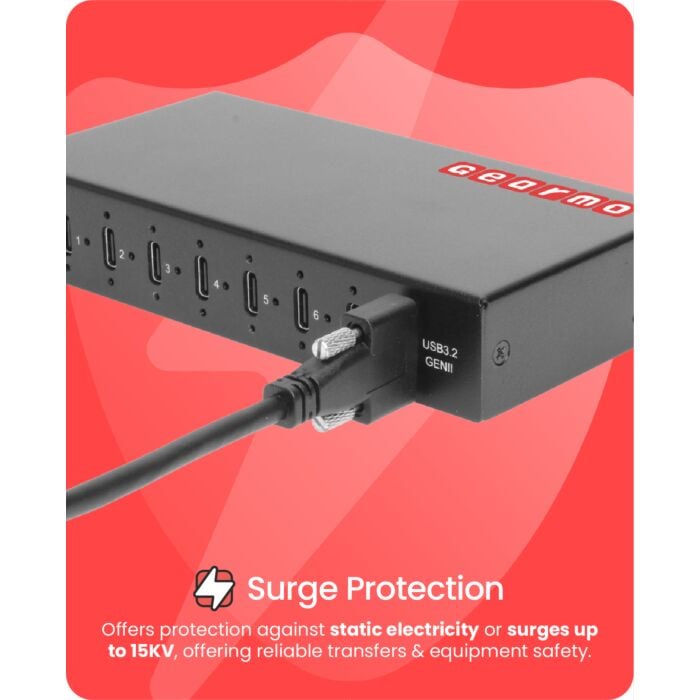

Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. Housed in a steel metal chassis, this hub is ready to tackle harsh industrial environments.

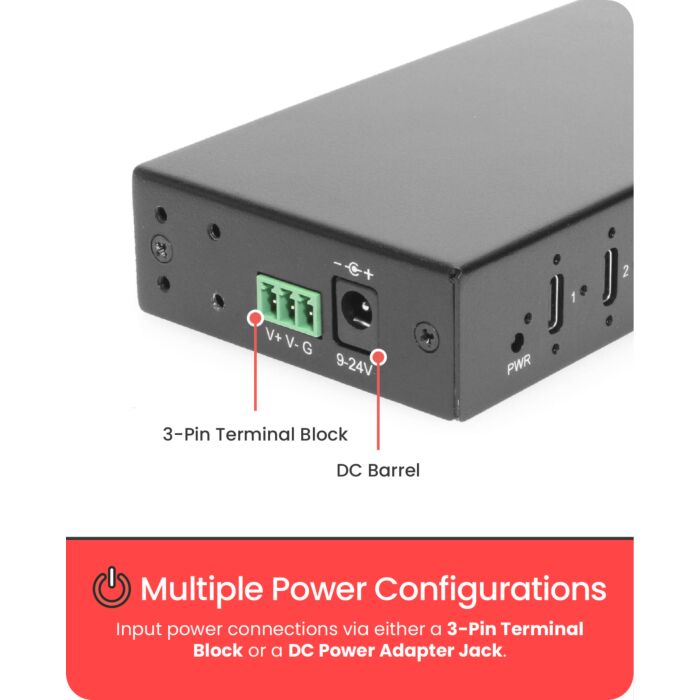

Flexible Power: Power your way with a wide input voltage range of 9 ~24V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block.
Upstream: USB Type-C
Downstream: 7x USB Type-C
Power Input: 3-Pin Terminal Block, DC Barrel

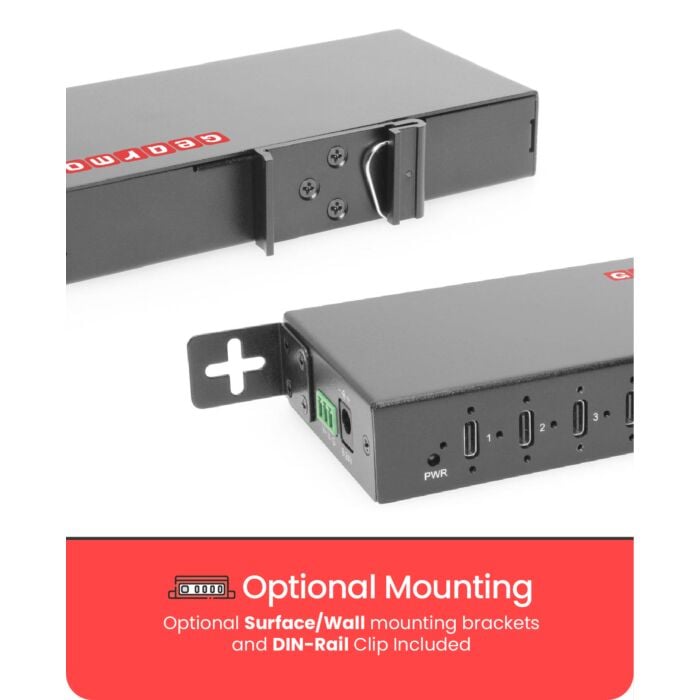

Mounting Styles: Surface, Wall, and DIN-Rail
Model Number: GM-HU37C-DW
Documentation & Downloads
7-Port USB 3.2 Gen 2 Type-C Industrial Surface & DIN-Rail Mount Hub w/ ESD Surge Protection
$127.99
Details
The GM-HU37C-DW Gearmo USB 3.2 Gen 2 hub is an industrial metal hub with 7 downstream USB Type-C ports. All ports, both downstream and upstream are conveniently located on the front facing panel along with the Terminal and barrel power connections. The GM-HU37C-DW USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with Gen 2 standards, data speeds up to 10Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.
Features:
- Adds 7 3.2 Gen 2 compliant USB Type-C ports
- Output: 7x USB-C with each 2.4A, total 57W max
- Rugged metal chassis with surface & DIN Rail mount support
- 9~24V DC power input with an included DC Barrel power supply
- LED indicators for each port to show connection confirmation
- Screw-locking ports
- Upstream USB Type-C port
- 15kV ESD protection for all USB ports
OS Support:
- Windows 7, Windows 8, Windows 10, Windows 11
- Mac OS X
- Linux

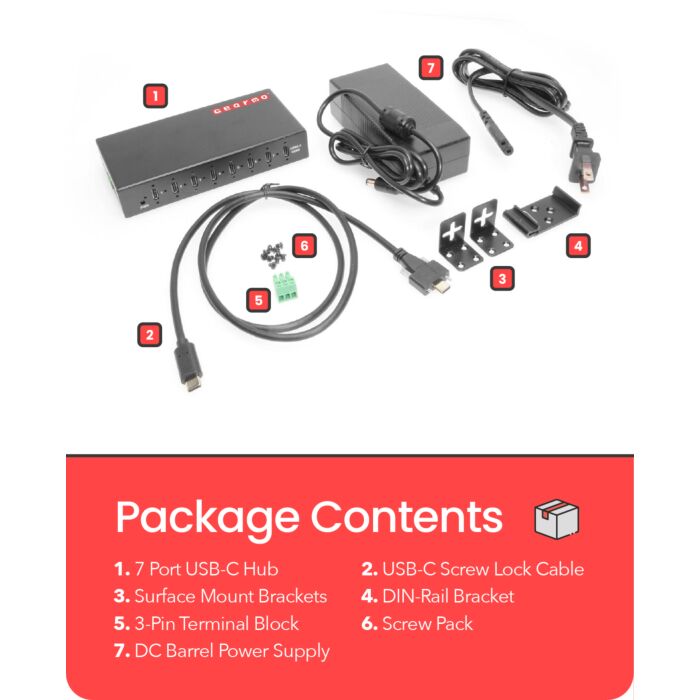

Package Contents:
- Industrial 7-Port USB 3.2 Gen 2 Type-C Industrial Hub
- User Manual
- Power Adapter with DC Barrel Connector
- USB Type-C to Type-C Screw-Locking Cable
- DIN-Rail & Wall Mounting Kit
- 3-Pin Terminal Block
- Screw Package
Technical Specifications
| UPC | 045079164741 |
|---|---|
| Country of Origin | China |
| Manufacturer | Gearmo |
| Warranty | One Year |
| Item Length (in) | 5.5 |
| Item Width (in) | 2.75 |
| Item Height (in) | 1 |
| Item Weight (lbs) | 0.59 |
| Connector(s) | 3-Pin Terminal Block, DC Barrel, USB 3.2/3.x Single/Dual Screw Lock Type C Female |
| LED Indicators | Port Status, Power |
| Downstream Port Count | 7 |
| Chip Model | VL822-Q7 |
| Input Voltage | 9~24V DC |
| OS Support / Compatibility | Linux, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV |
| Downstream Port Type | Type C, Type C (Charging Only) |
| Upstream Port Count | 1 |
| Upstream Port Type | USB Type C Female |
