4-Port USB 3.2 Gen 2 Type-C Industrial Surface & DIN-Rail Mount Hub w/ ESD Surge Protection
Extensive Connections: Expand your host system’s peripheral capabilities with 4 additional USB Type-C ports.

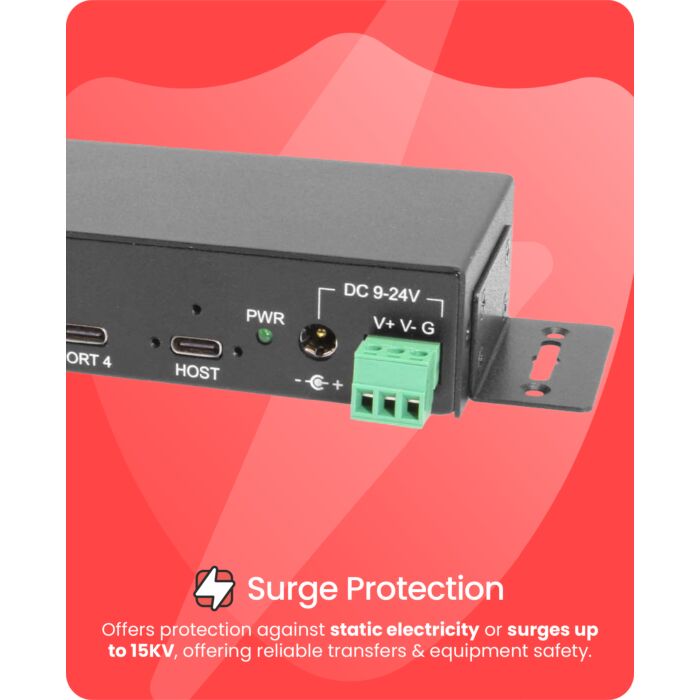

Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. Housed in a steel metal chassis, this hub is ready to tackle harsh industrial environments.

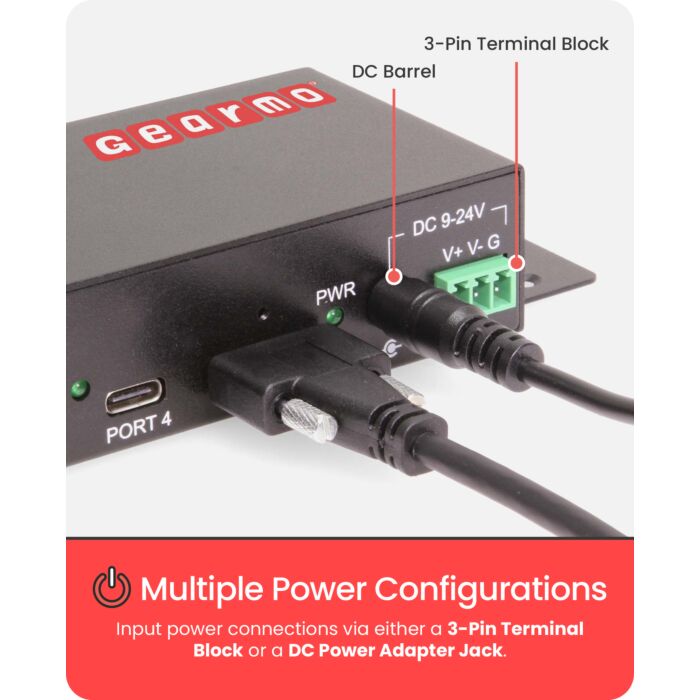

Flexible Power: Power your way with a wide input voltage range of 9 ~24V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block.
Upstream: USB Type-C
Downstream: 4x USB Type-C
Power Input: 3-Pin Terminal Block, DC Barrel
Mounting Styles: Surface, Wall, and DIN-Rail
Model Number: GM-HU34CC-DW
Documentation & Downloads
4-Port USB 3.2 Gen 2 Type-C Industrial Surface & DIN-Rail Mount Hub w/ ESD Surge Protection
$114.99
Details
The GM-HU34CC-DW Gearmo USB 3.2 Gen 2 hub is an industrial metal hub with 4 downstream USB Type-C ports. All ports, both downstream and upstream are conveniently located on the front facing panel along with the Terminal and barrel power connections. The GM-HU34CC-DW USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with USB 3.2 Gen 2 standards, data speeds up to 10Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.
Features:
- Adds 4 3.2 Gen 2 compliant USB Type-C ports supporting up to 10Gbps data transfer rate
- Rugged metal chassis with surface & DIN Rail mount support
- 9~24V DC power input with an included DC Barrel power supply
- LED indicators for each port to show connection confirmation
- Upstream USB Type-C port
- 15kV ESD protection for all USB ports
Package Contents:
- Industrial 4-Port USB 3.2 Gen 2 Type-C Industrial Hub
- User Manual
- Power Adapter with DC Barrel Connector
- USB Type-C to Type-C Screw-Locking Cable
- DIN-Rail & Wall Mounting Kit
- 3-Pin Terminal Block
- Screw Package
Technical Specifications
| UPC | 045079164079 |
|---|---|
| Country of Origin | China |
| Manufacturer | Gearmo |
| Warranty | One Year |
| Item Length (in) | 4.45 |
| Item Width (in) | 2.09 |
| Item Height (in) | 1.02 |
| Item Weight (lbs) | 1.12 |
| Connector(s) | 3-Pin Terminal Block, DC Barrel, USB 3.2/3.x Type C Female, USB 3.2/3.x Single/Dual Screw Lock Type C Female |
| LED Indicators | Port Status, Power |
| Downstream Port Count | 4 |
| Chip Model | VL822-Q7 |
| Input Voltage | 9 ~ 24V DC |
| OS Support / Compatibility | Linux, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV |
| Downstream Port Type | Type C |
| Upstream Port Count | 1 |
| Upstream Port Type | USB Type C Female |
