2-Port USB 3.2 Gen 1 Industrial Surface & DIN-Rail Mount Hub w/ Gigabit Ethernet & DB9 Serial FTDI Chipset

Introduction

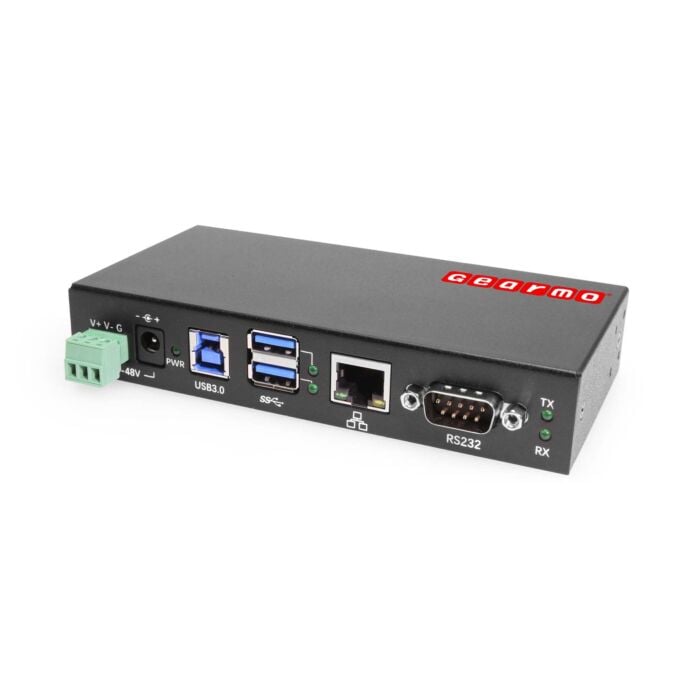

The GM-HU32ES High Speed 2-Port USB 3.2 Gen 1 Hub is designed as a Super-Speed rugged industrial style hub with its mounting brackets and DIN-Rail mount included. Gearmo’s USB 3.2 Gen 1 Super-Speed metal Hub supports 2 USB-A 3.2 Gen 1 downstream port connections, 1 RS-232 DB9 serial port, 1 RJ-45 Ethernet port, and 1 USB-B upstream port for connection to the host computer.

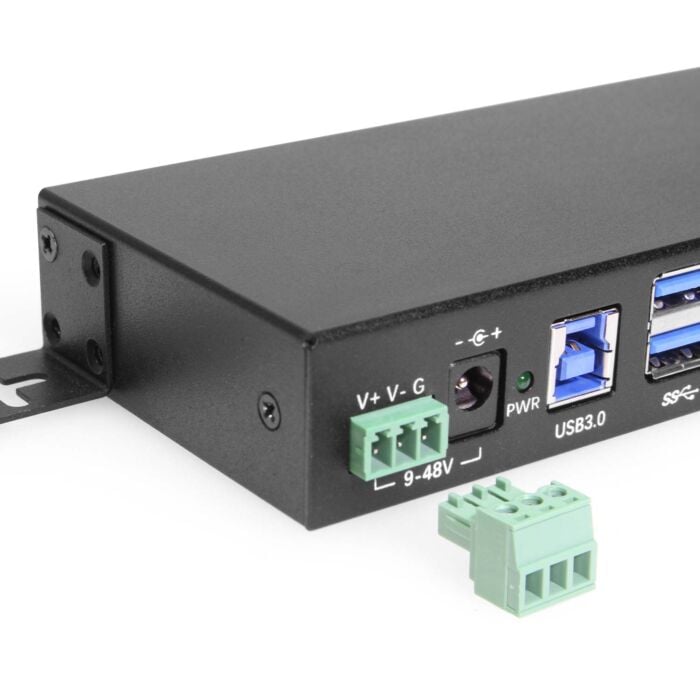

The USB 3.2 Gen 1 hub includes a DC barrel power adapter for power consuming devices and a separate 3-wire terminal block power connector for use with DIN-Rail mounted operations. The Gearmo USB 3.2 Gen 1 industrial Hub includes ESD surge protection of 15kV per port.

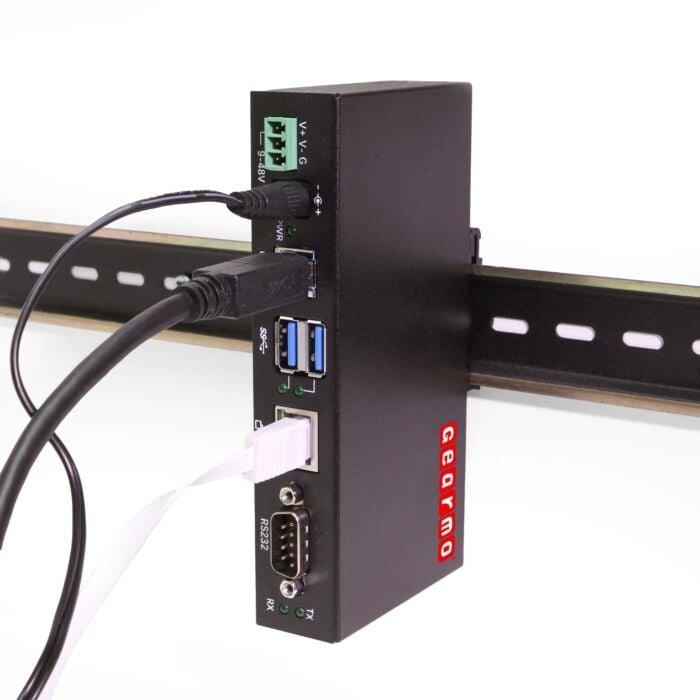

The GM-HU32ES USB 3.2 Gen 1 Hub has multiple mounting options available depending on its usage. The USB 3.2 Gen 1 Hub can be mounted via mounting brackets that are secured by four individual screws per bracket on both ends of the Hub. The bracket flange is a slotted design to allow for movement when fastening the Hub to a wall or tabletop. The GM-HU32ES USB 3.2 Gen 1 Hub also includes a DIN-Rail mounting bracket that secures to the rear panel via three screws keeping the Hub secured to the DIN-Rail.

Specification

• Support all USB 1.1 to 3.2 Gen 1 compatible peripheral devices, data transfer up to 5Gbps
• Support Ethernet 10/100/1000 Mbps
• Single RS232
• 9-48V DC input
• Support LED indicator
• Support USB 3.2 Gen 1 plug and play
• 15KV ESD surge protection
• Operating temperature: 0C~50C

OS Support:

• Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11
• Mac OS X

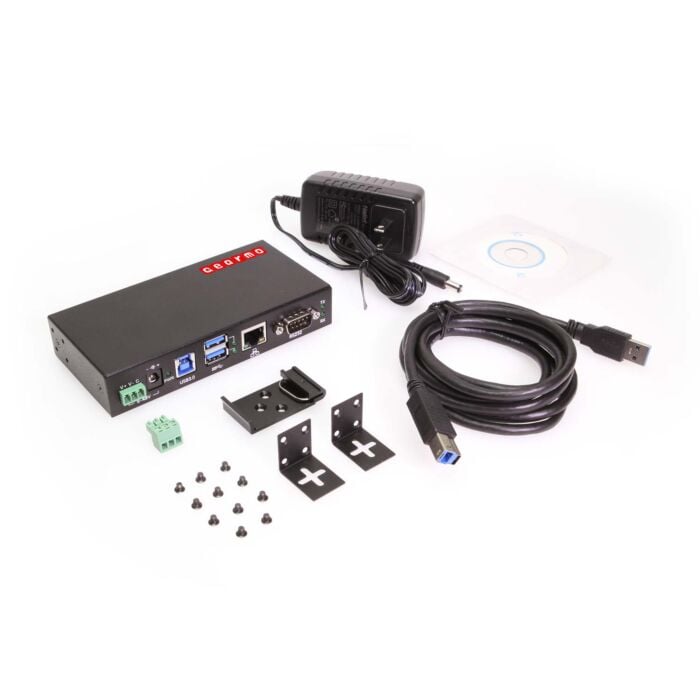

Package Contents

• 2 Port USB Hub with 1 Serial Port and 1 Ethernet port
• Power Adapter
• 2 Meter USB 3.2 Gen 1 A to B Cable
• Wall Mount Brackets
• Screw Pack
• Driver CD
• 3-Pin Terminal Block
• Din Rail Bracket
• User manual
