Industrial USB 4 Port Serial RS-232 Adapter w/FTDI Chipset, COM Retention, RX/TX LED Indicators, DIN Rail Mount Bracket, & Surface Mounting Brackets
Gearmo USB 4 Port Serial RS232 featuring FTDI Chipset with LED Indicators Industrial Version
Model Number: GM-FTDI4X-M
Documentation & Downloads
Industrial USB 4 Port Serial RS-232 Adapter w/FTDI Chipset, COM Retention, RX/TX LED Indicators, DIN Rail Mount Bracket, & Surface Mounting Brackets
$94.99
Details
Gearmo's 4 port Industrial RS232 DB9 adapter, connects to your Laptop or desktop through a single USB port while providing you with 4 fully addressable DB9 RS232 Com ports, these ports can be easily configured in your systems device manager. The GM-FTDI4X-M is housed in a rugged chassis for installations in offices, labs, warehouses, heavy machinery, and automation equipment. For most installations, the self-powered configuration is standard, a powered option is also available on the unit for those who need pass-through power, supporting variable voltage 9~48VDC input. Supports Windows 7, 8, 10, and 11, Linux, and macOS.
Features:

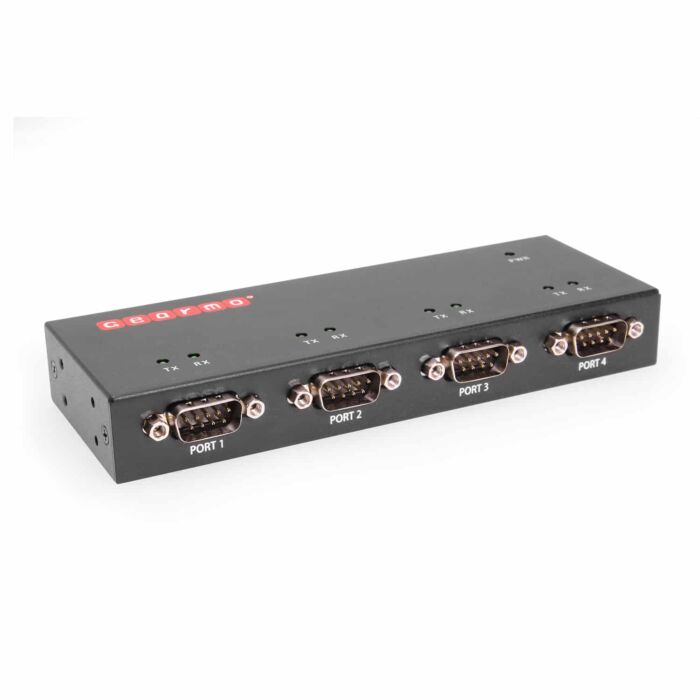

- 4x DB9 Serial Ports

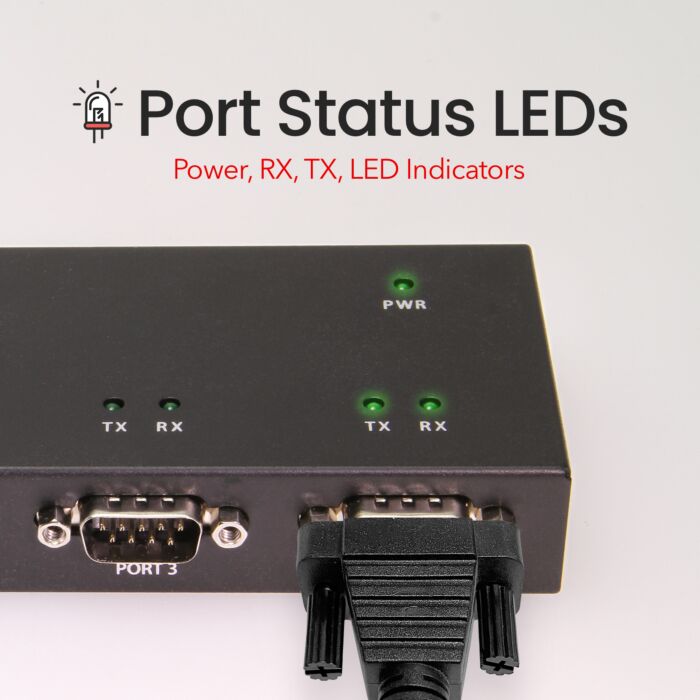

- Power, RX, TX, LED Indicators

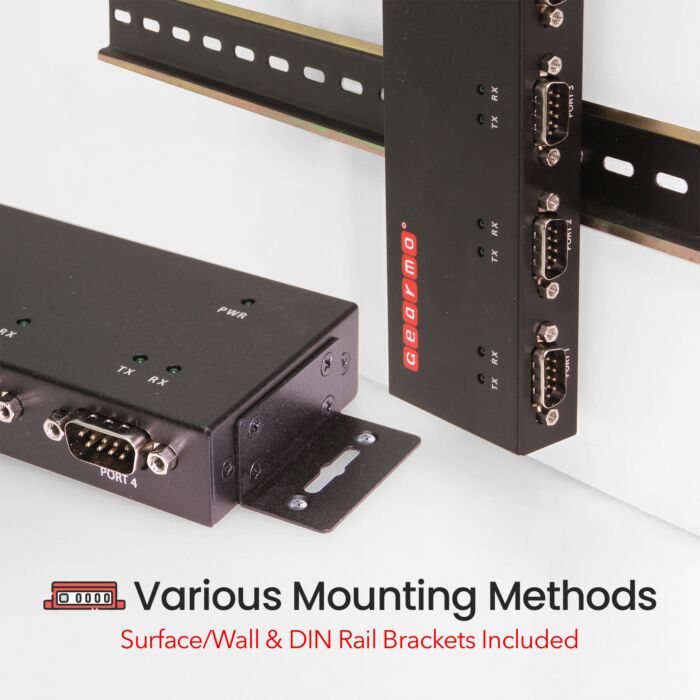

- Surface/Wall and DIN Rail mounting brackets included

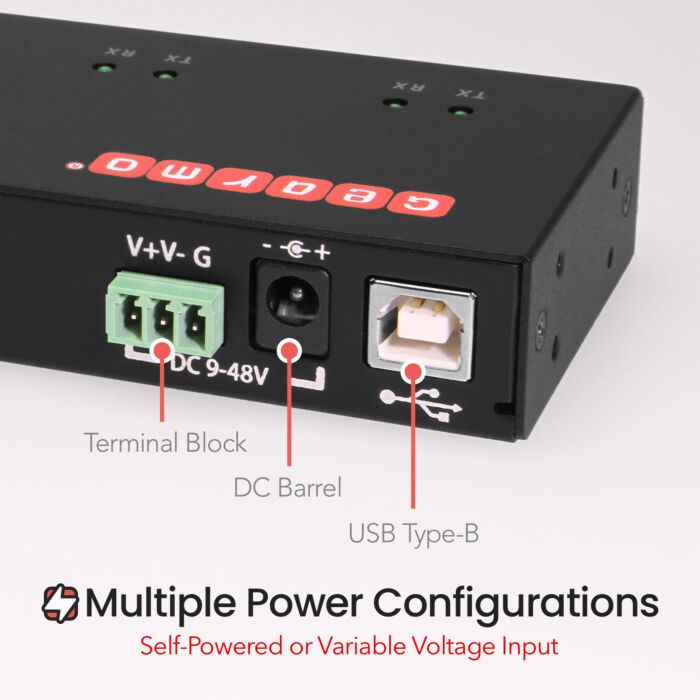

- Supports Self Power and Variable Voltage input 9 ~ 48V
- Rugged Metal Chassis
- Approvals: CE, FCC, REACH, RoHS
Specifications:
| Model | GM-FTDI4X-M |
| Host Interface | USB2.0 |
| Chipset ID | FT4232HL |
| External Connectors | 4x9-pin DB9 male
1xUSB type B Female |
| Serial Protocol | RS-232 |
| Maximum Data | 921.6kbps |
| Data Bits | 7,8 |
| Parity | Odd,Even,Mark,Space,None |
| Stop Bits | 1,2 |
| Buffer Size | 4096 byte Transmit and Receive |
| Enclosure Material | Metal |
| Mounting Options | Wall/Surface,DIN Rail |
| Operating Temperature | 0℃~55℃ |
| Storage Temperature | -20℃~85℃ |
| Humidity | 5％~95％RH |
| Dimensions | 160X62.5X23mm |
| Weight | 281g |
| Compatible Operating systems | Windows 7, 8, 10, & Windows 11 Mac OSx Linux |
DB-9 Pin Assignments:
| Pin | Assignment |
| 1 | DCD |
| 2 | RXD |
| 3 | TXD |
| 4 | DTR |
| 5 | SG |
| 6 | DSR |
| 7 | RTS |
| 8 | CTS |
| 9 | RI |

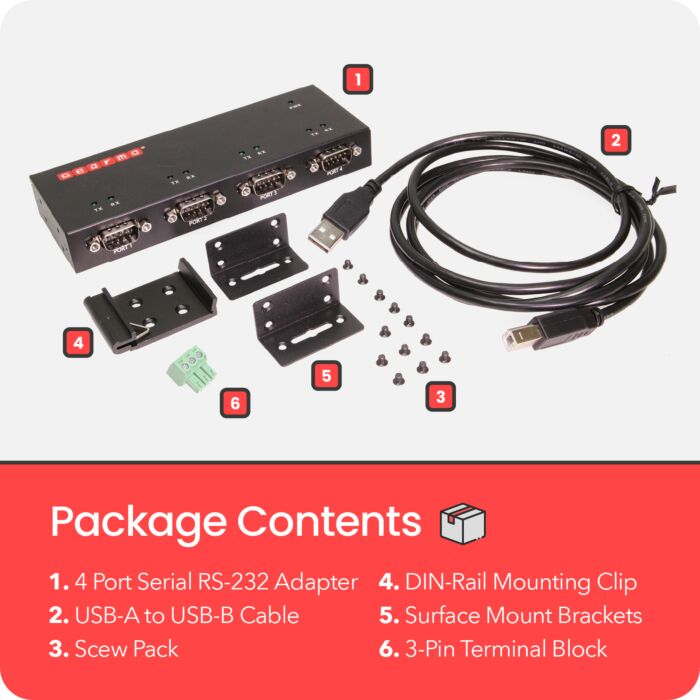

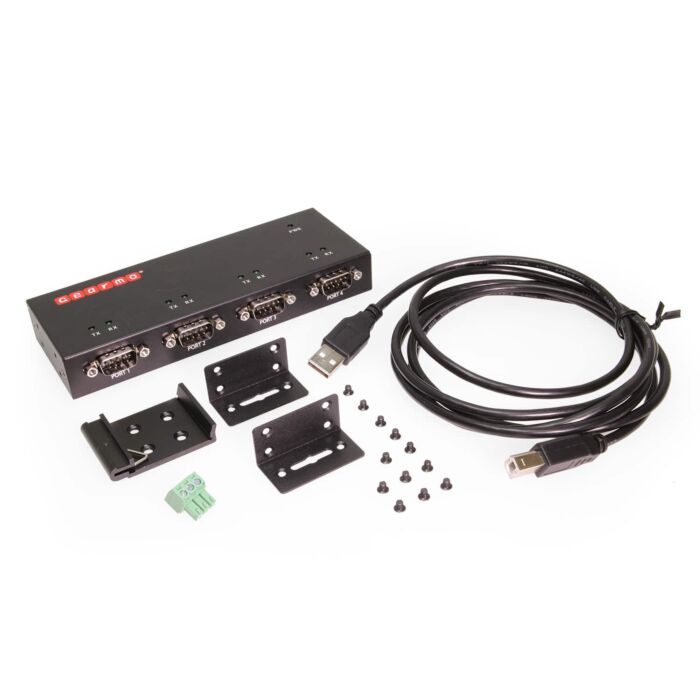

Package Contents:
- 4-Port Industrial USB to RS-232 Serial Adapter
- User Manual
- Driver CD
- USB 2.0 Type-A to Type-B Cable
- DIN-Rail and Wall Mount Kit
Technical Specifications
| UPC | 045079161573 |
|---|---|
| Manufacturer | Gearmo |
| Warranty | One Year |
| Country of Origin | China |
| Item Length (in) | 6.299 |
| Item Width (in) | 2.461 |
| Item Height (in) | 0.906 |
| Input Voltage | 9 ~ 48V DC |
| LED Indicators | Power, TX/RX |

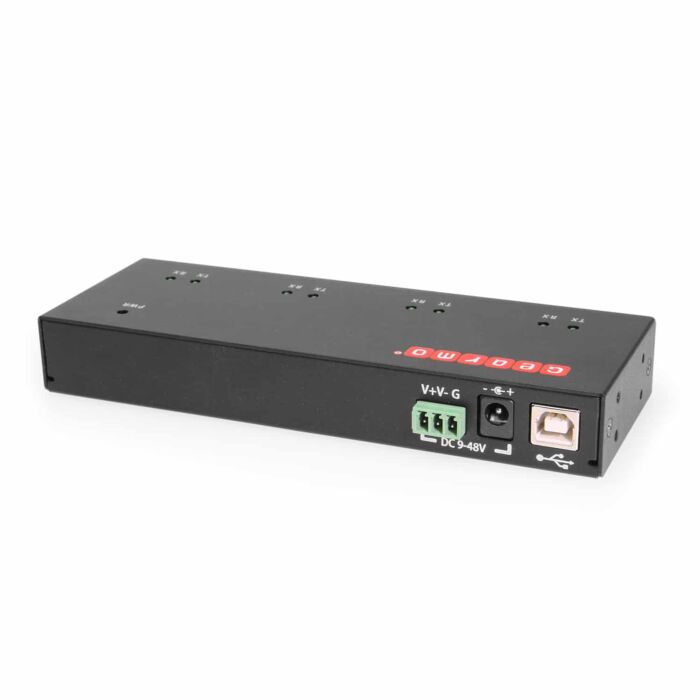

| Connector(s) | 3-Pin Terminal Block, DB9 Male w/ Nuts, DC Barrel, USB 2.0 Type B Female |
| Downstream Port Count | 4 |
| Serial Modes | RS232 |
| Chip Model | FTDI FT4232HL |
| OS Support / Compatibility | Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV |
| Downstream Port Type | Male DB9 /W Nuts |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 2.0 Type B |
