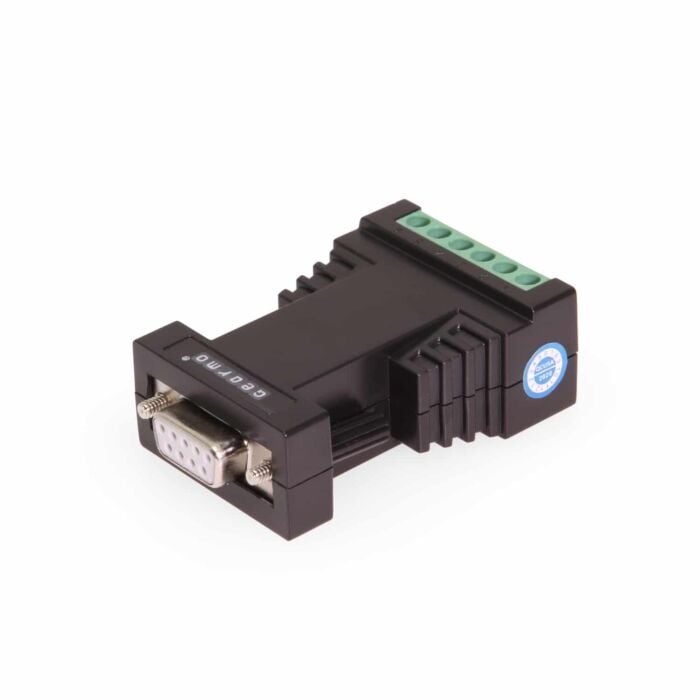

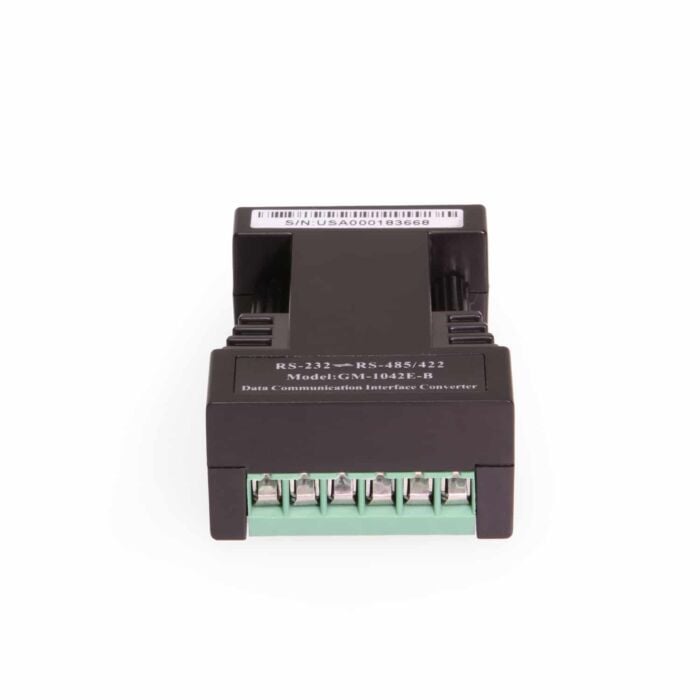

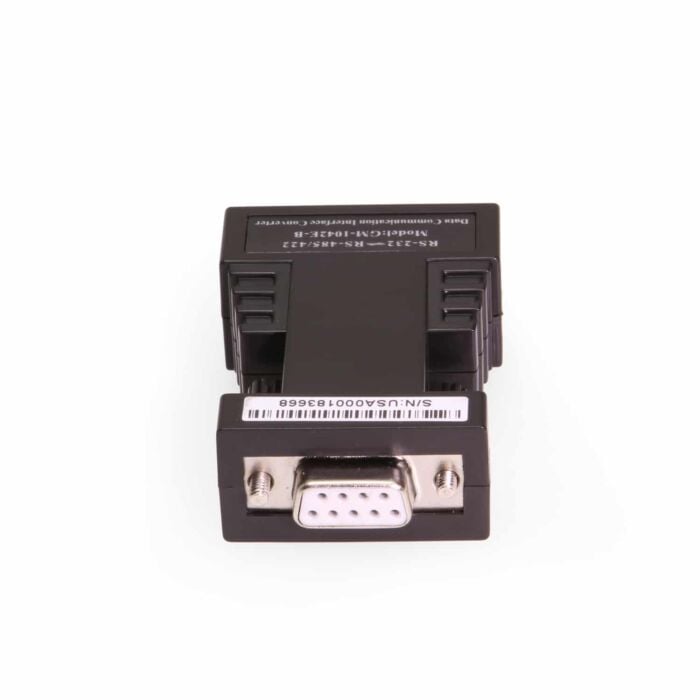

RS-232 to RS-485/422 Converter with Surge Protection

The GM-1042E-B converter is compatible with RS-232C, RS-485/422 standards. It converts RS-232 signals into balanced differential RS-485 or RS-422 signals. The transmission distance of RS-232 communication can be extended to 1.2km. It adopts a unique “RS-232” charged signal to drive the system and gains power without initializing the RS-232 serial port. Featuring Zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR); this guarantees that there is no need to modify the programming under RS-232 full-duplex or half-duplex mode, it will run smoothly under RS-485/422 mode, ensure to suitable for current software and hardware. The transmission rate is 300-115.2kbps. It can be used between hosts, host and SCM, which building a point to point, point to multipoint long-distance communication networking. It is widely applied in industrial automation control systems, all-in-one controller cards, access control systems, parking systems, ATM systems, bus charging systems, canteen ticketing systems, attendance systems, and toll station systems, etc.

Features:

• Standards: RS-232C, RS-485/422 EIA/TIA
• RS-232 DB9 female connector, RS-485 DB9 male connector, with terminal block
• Operating mode: asynchronous half-duplex, differential transmission, no need jumper setting
• Transmission media: twisted-pair or shielded cable
• Baud rate: 300bps-115.2kbps
• Transmission distance: 1,200m (RS-485/422); 5m (RS-232)
• Protection: 2KA lightning surge protection
• Operating temperature: -40C to 85C
• Relative humidity: 5% to 95%

OS Independent

Works with any operating system including:

• Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11
• Mac OS X
• Linux
