7 Port Managed USB-C 3.2 Gen 2 Hub w/ 15KV ESD Surge Protection
Status: Not in stock - Backorder Allowed
Industrial Grade | +7~24V DC Input | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock
- Advanced Protection: The 7-port USB 3.2 Gen 1 hub protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected devices will be protected.
- Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
- Port Management Software: Control each individual ports’ status, turn bus power on/off, and even reset the entire hub through the hub’s management software which supports Windows, Mac, and Linux operating systems

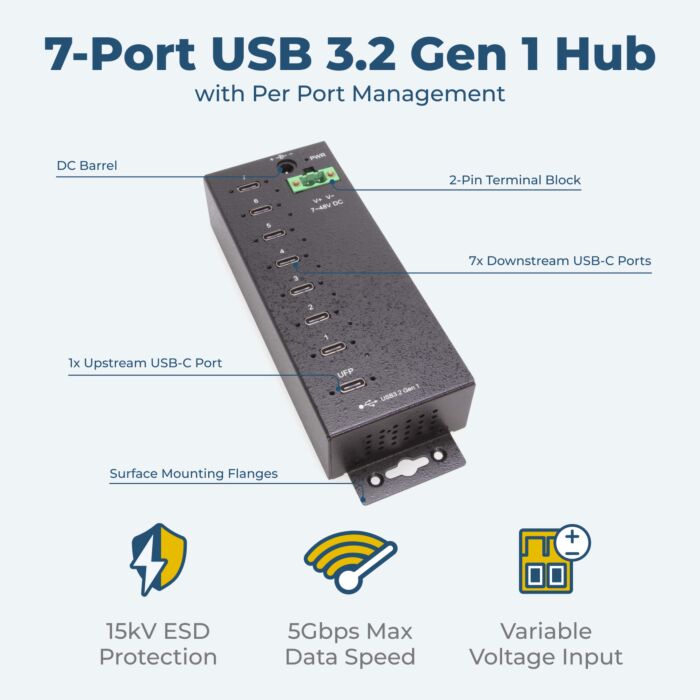

- Upstream: 1 USB port, Type C connector, Screw-lock type
- Downstream: 7 USB ports, Type C connectors, Screw-lock type
- LED Indicators: 7 LEDs for each downstream port to indicate the current bus

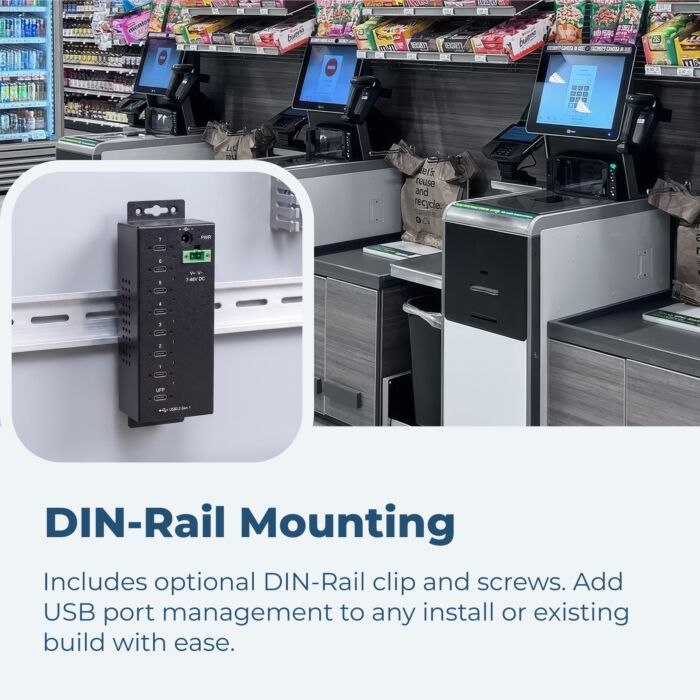

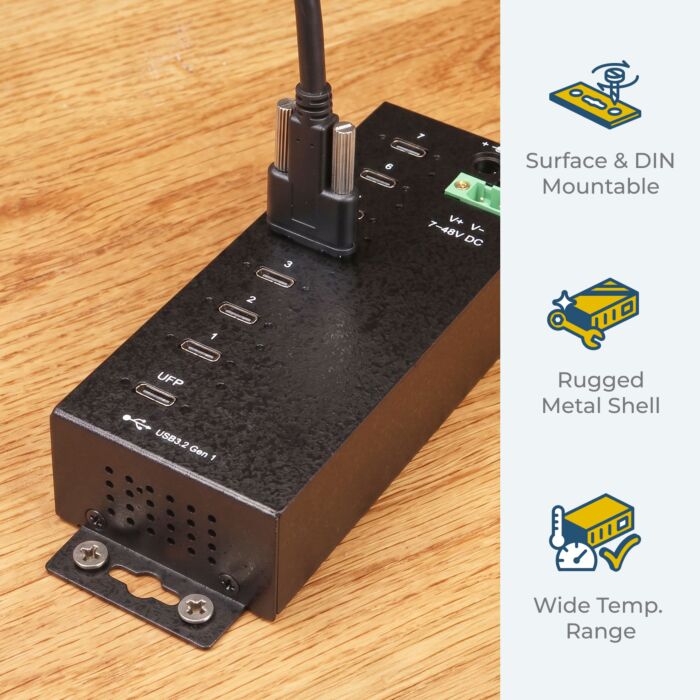

- Mounting Options: Wall, Surface, and DIN Rail
- Supply Current: 2.4A max. per channel
Compatibility
![](/media/icons/osx_icon.png)
![](/media/icons/linux_icon.png)
![](/media/icons/win7_icon.png)
![](/media/icons/win8_icon.png)
![](/media/icons/win10_icon.png)
![](/media/icons/win11_icon.png)
7 Port Managed USB-C 3.2 Gen 2 Hub w/ 15KV ESD Surge Protection

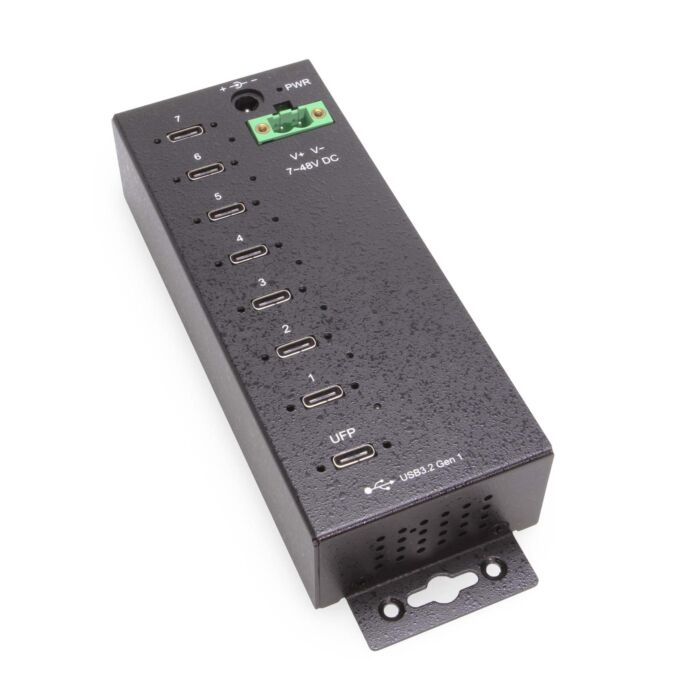

![Product Image](https://secure.usbgear.com/media/catalog/product/c/g/cg-7mgdu3cml_img_001x1500.jpg)
Compatibility
![](/media/icons/osx_icon.png)
![](/media/icons/linux_icon.png)
![](/media/icons/win7_icon.png)
![](/media/icons/win8_icon.png)
![](/media/icons/win10_icon.png)
Introduction:
CG-7MGDU3CML from our MDS-UH Port Management Series is a USB 3.2 Gen 1 Hub that complies with the Universal Serial Bus (USB) Specifications Revision 3.2 Gen 1 and works up to 5Gbps. It provides 7 downstream facing ports with standard Type-C USB 3.2 Gen 1 screw-lock connectors.
The CG-7MGDU3CML provides a unique self-power mode to work with a wide range (+7~48V) input DC power from its terminal blocks. It supports USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP).
Since the USB is the most popular external port for the devices to connect to PCs, the CG-7MGDU3CML provides an ideal solution to expand your USB ports immediately and save your investment.
Managing Software:
The CG-7MGDU3CML software package contains several managing software utilities that support different platforms allowing better control over each individual ports' status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++, VB, Python, or even a PHP server scripting language.

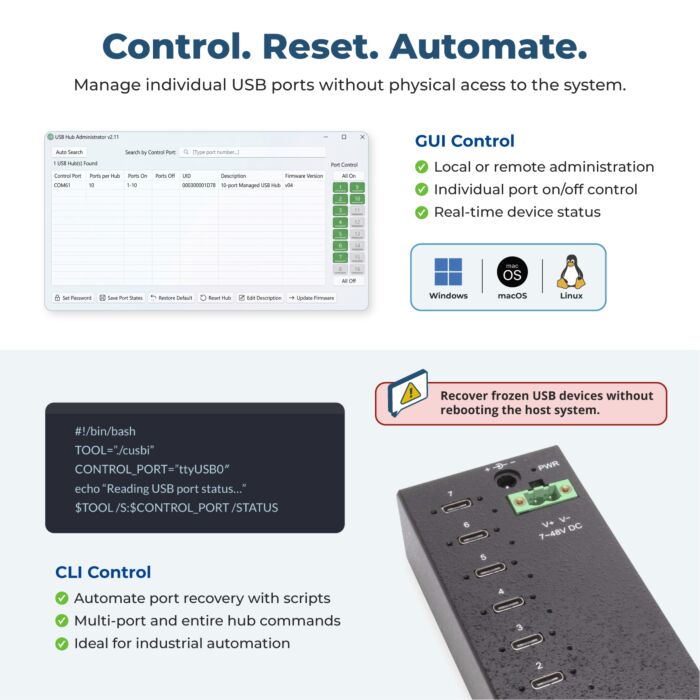

Image: Port managing software displaying the On/Off status of each port.

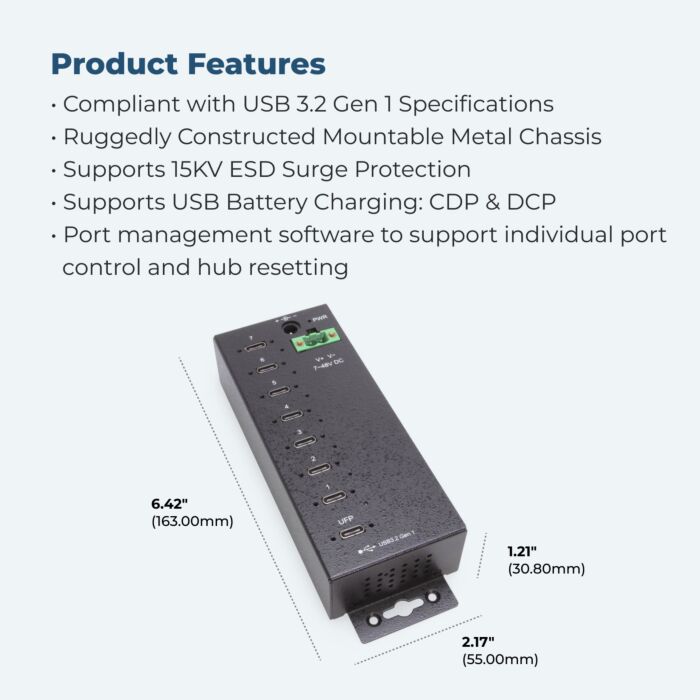

Features:
- Compliant with USB Specification 3.2 Gen 1
- Metal Case with DIN RAIL Mounting Kit for
- Industrial Critical Applications
- Provides 7 Downstream USB 3.2 Gen 1 Facing Ports
- Supports 5Gbps (Super-speed), 480Mbps (High-speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
- Supports 15KV ESD Surge Protection for Each Port
- Supports +7~48V DC Wide Range Self-power Input
- Multi Transaction Translators (TT) per Hub
- Support USB Battery Charging: CDP and DCP modes

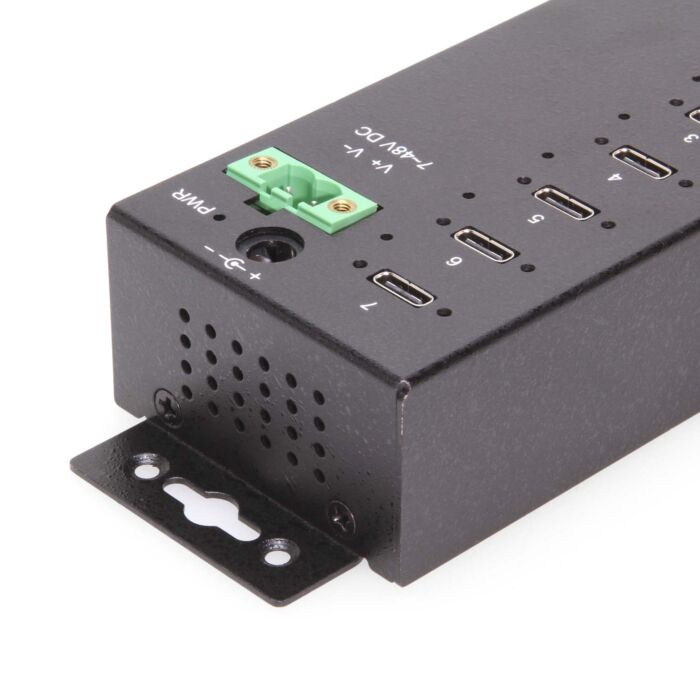

- Supports Push-In, Screw-Lock Power Terminal Blocks
- DC Jack and Terminal Blocks Power Input Connectors

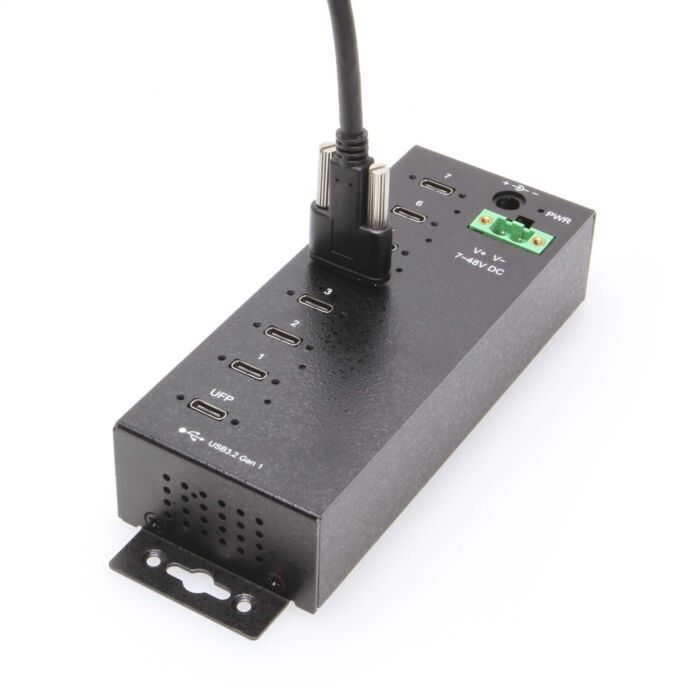

- Supports USB Screw-Lock Cable Mechanism
Note: The last USB port of this hub (Port 7) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.
Package Contents:
- 7 Port Managed USB 3.2 Gen 1 Hub
- 5ft. USB-A to Screw Lock USB-B Cable
- 2-Pin Terminal Block
- DIN Rail Clips
- Screw Pack
*Surface Mounting screws not included.
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
Manufacturer: | Coolgear | Warranty: | 1 Year | Availability: | |
Barcode: | 045079164550 | Ship Weight: | 1.11 | Condition: | New |
Part Number: | CG-7MGDU3CML | Color: | Black | Length/Size: | -- |
USB Spec: | USB 3.2 Gen 1 | Max Data Rate: | 5 Gbps | Input Voltage: | 7 ~ 24V DC |
Upstream Port: | USB 3.2G1 / 3.0 Type-C Female | Downstream Port(s): | 7x Type C USB 3.2 G1 / 3.0 | Screw Lock Compatible: |
Yes |
Specifications
Manufacturer: | Coolgear |
Barcode: | 045079164550 |
Part Number: | CG-7MGDU3CML |
Warranty: | 1 Year |
Ship Weight: | 1.11 |
Color: | Black |
Availability: | |
Condition: | New |
USB Spec: | USB 3.2 Gen 1 |
Max Data Rate: | 5 Gbps |
Input Voltage: | 7 ~ 24V DC |
Upstream Port: | USB 3.2G1 / 3.0 Type-C Female |
Downstream Port(s): | 7x Type C USB 3.2 G1 / 3.0 |
Screw Lock Compatible: |
Yes |
