USB to Serial 4-Port DB-9 RS-232 Adapter with FTDI Chipset
Status: Available

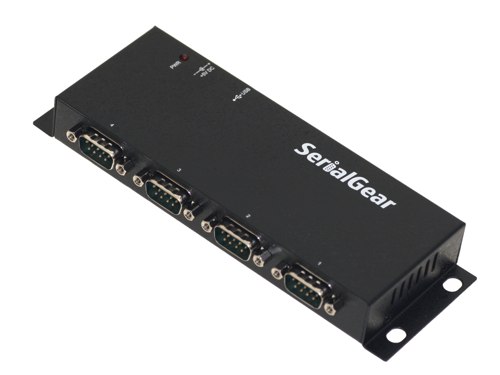

The USBG-BAY4 is a 4 port DB-9 RS232 to USB serial adapter that is designed for PC, thin client, or server. It provides instant communication port expansion when using the Universal Serial Bus (USB). The USBG-BAY4 has excellent scalability and quickly adapts to new USB technologies.
Compatibility
USB to Serial 4-Port DB-9 RS-232 Adapter with FTDI Chipset
Compatibility
The USBG-BAY4 is a 4 port DB-9 RS232 Adapter to USB that is designed for PC, thin client, or server to provide 4 instant DB-9 RS-232 COM port expansions from the Universal Serial Bus (USB) host. This 4 port DB-9 RS232 Adapter provides the scalability to quickly adapt to new USB technologies.
Multiple modules can be added to a single USB interface allowing you to add 1 to 4 serial RS232 port connections as needed helping your network grow with your requirements. With the USB Plug-and-Play features, you can simply plug in and follow the instructions of Install Wizard, You're ready to use your serial devices once the installation is complete.
Going through a configuration with the Serial DB-9 RS-232 Adapter for Card Slots, I/O address, IRQ jumpers, DMA and others when you are connecting the devices is not necessary as the system will recognize the device and install the drivers automatically.
Additional Features:
- USB Port Fully compatible with USB1.0 and USB1.1; Forward compatible with USB 2.0
- Serial Port Supports 4 DB9-Male UART Serial ports, the key benefits are:
- Supports 3-wire RS232 Signals (TXD, RXD, GND)
- Rigid Metal Case for Critical Applications
- Four Port Serial RS-232 DB-9 Box USB Converter
- Baud Rate from 75 bps to 921.6Kbps
- 512-Byte Deep FIFOs for each Port
- Supports 5,6,7,8 Data Bits
- Odd, Even, Mark, Space, or None parity mode
- Supports 1, 1.5 and 2 Stop Bits
- Supports USB Bus Power
- DC Jack for Optional DC 5V Power Input
- Windows 7, Windows 8, and Windows 10
- Linux and Mac OS 10.X
- 6.83”(L) x 3.83”(W) x 0.96”(H)
- (17.35 x 9.72 x 2.43 cm)
- 6ft. USB A to B Detachable cable (can be extended up to 15ft)
- Windows Driver CD
- Easy Instructions Booklet/User Manual
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
Manufacturer: | SerialGear | Warranty: | 1 Year | Availability: | Available |
Barcode: | 729440626976 | Ship Weight: | 1.01 | Condition: | New |
Part Number: | CS-42042 | Color: | Black | Length/Size: | in |
Port Count: | -- | Port Type: | -- | Input Voltage: | Unspecified or N/A |
Temperature(Op): | -- | ESD Protection: | -- | Serial Modes: | -- |
LEDs: | -- | Isolation: | -- | Chip: | -- |
Specifications
Manufacturer: | SerialGear |
Barcode: | 729440626976 |
Part Number: | CS-42042 |
Warranty: | 1 Year |
Ship Weight: | 1.01 |
Color: | Black |
Availability: | Available |
Condition: | New |
Port Count: | -- |
Port Type: | -- |
Input Voltage: | Unspecified or N/A |
Temperature(Op): | -- |
ESD Protection: | -- |
Isolation: | -- |
Serial Modes: | -- |
LEDs: | -- |
Chip: | -- |
