Supports 350-Watt Surge Protection for Each Ports

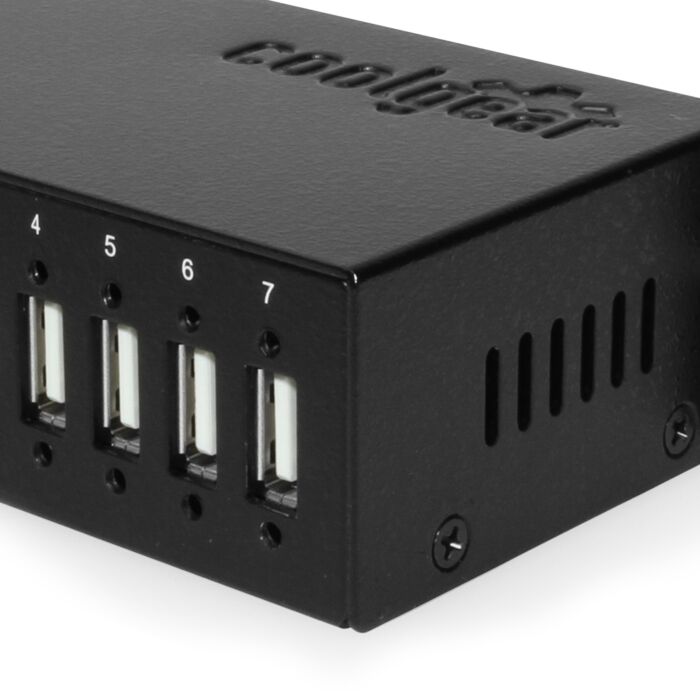

7-Port USB2.0 Hub w/ Surge Protection and DIN RAIL Mounting Kit

Compliant with USB Specification Revision 2.0

Built-in NEC uPD720113 USB2.0 Hub Controller

Metal Case, Ideal for Critical Applications

ü Compliant with USB Specification Revision 2.0

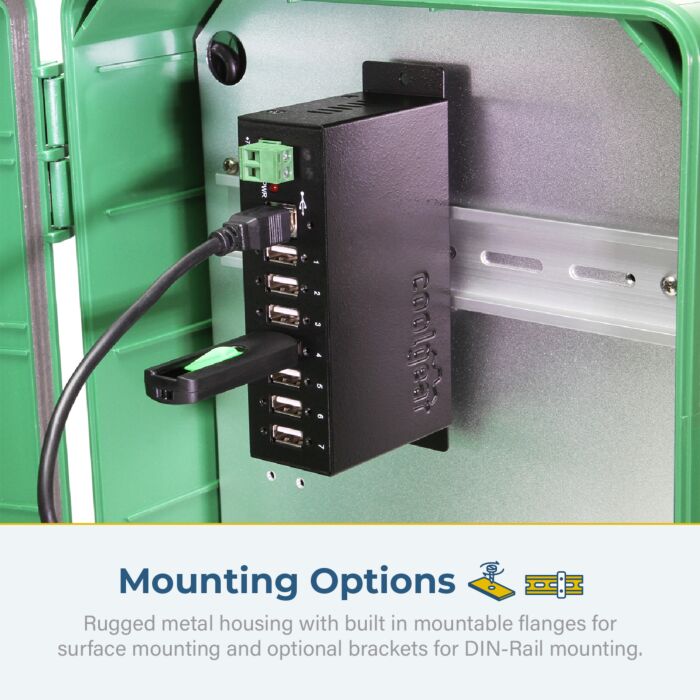

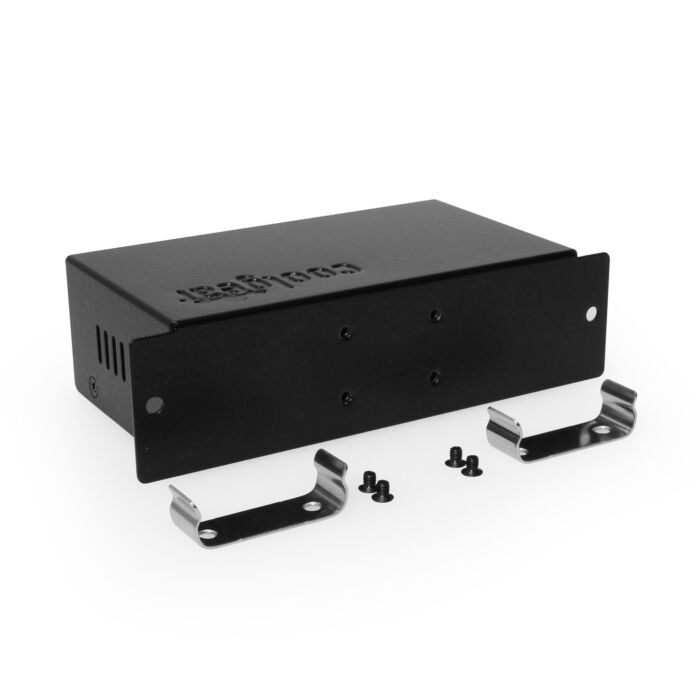

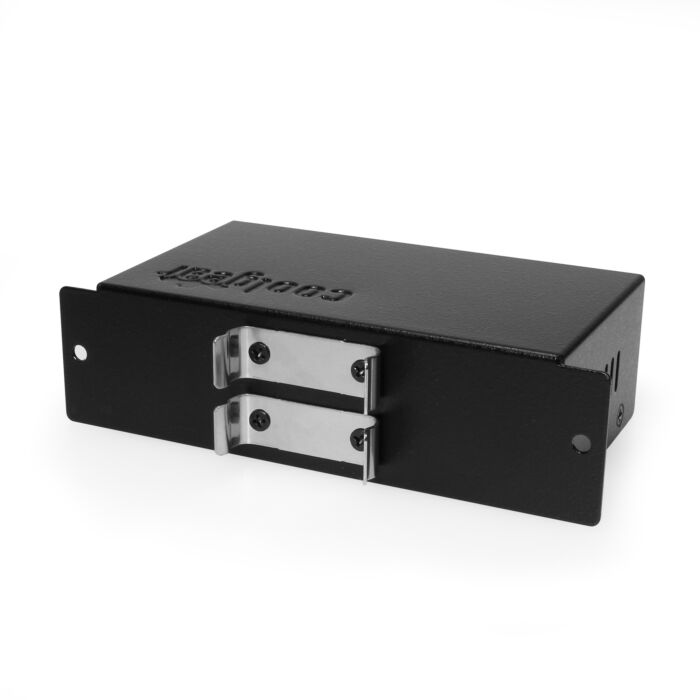

ü Metal Case with DIN RAIL Mounting Kit for

Industrial Critical Applications

ü Built-in NEC uPD720113 USB2.0 Hub Controller

Supports High-speed and or Full-speed Packet

Protocol Sequencer for Endpoint 0/1

Provides 7 Downstream Facing Ports

All USB Connectors Support Screw-Lock Feature

Supports 480Mbps, 12Mbps and 1.5Mbps Speed

One Transaction Translator per Hub and

Supports 4 Concurrent Non-periodic Transactions

Supports Self-powered and Bus-powered Mode

Supports 2-pin Terminal Block Power Connector

The USBG-7DU2 is an USB2.0 Hub that comply with the Universal Serial Bus (USB) Specifications Revision 2.0 and work up to 480Mbps. It provides 7 downstream facing ports with standard A-type USB2.0 connectors.

With NEC uPD720113 USB2.0 controller, it works backward compatible either when any one of downstream port is connected to an USB1.1 compliant device, or when the upstream port is connected to a USB1.1 compliant host.

The USBG-7DU2 also provides an unique feature to work in the bus-powered mode without an external AC power adapter. Its very convenient for light power consumption USB devices to work in this mode without an extra power supply. Only plug then go ahead. Besides, the external 2-pin Terminal Block Connector is used for self-powered mode if you need more power on the 7 downstream ports.

Since the USB is the most popular external port for the devices to connect to PCs, the USBG-7DU2 provides an ideal solution to expand your USB ports immediately and save your investment.

USB2.0 ports

Provides 7 USB downstream ports which managing up to 480Mbps:

Compliant with USB Specifications 2.0

High-speed or Full-speed Packet Protocol Sequencer for Endpoint 0/1

Provides 7 Downstream Facing Ports

All USB Connectors Support Screw-Lock Feature

Supports 480Mbps, 12Mbps and 1.5Mbps Speed

One Transaction Translator per Hub and Supports 4 Concurrent Non-periodic Transactions

Supports Self-powered and Bus-powered Mode

2-pin Terminal Block Power Input Connector

USB Devices

Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, virtual reality helmet, modem, PBX and many more USB devices

I/O Hardware

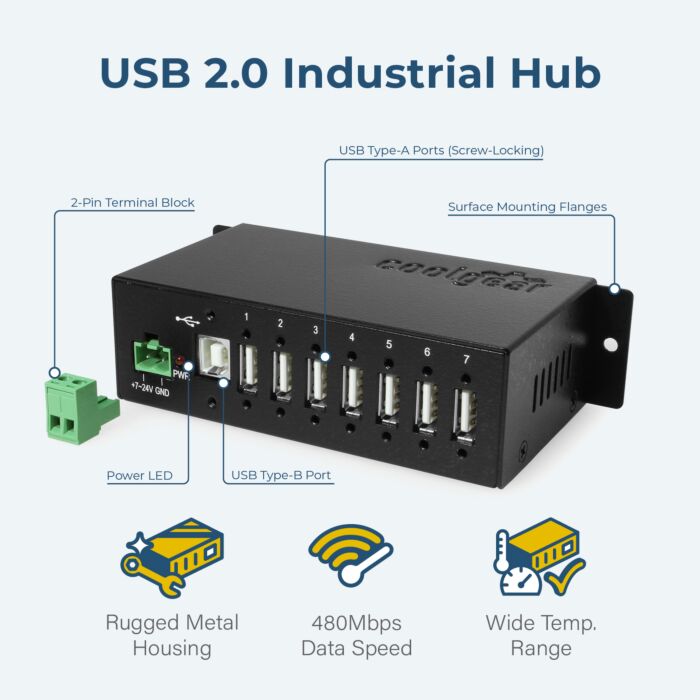

Supports 7 external USB2.0 Type-A connectors and 1 Type-B Upstream connector.

Supports a 2-pin Terminal Block

Connector for external DC power input

Environmental:

Operating Temp.: 0 to 558C (32 to 1318F)

Storage Temp: -20 to 858C (-4 to 1858F)

Operating Humidity: 5 to 95% RH

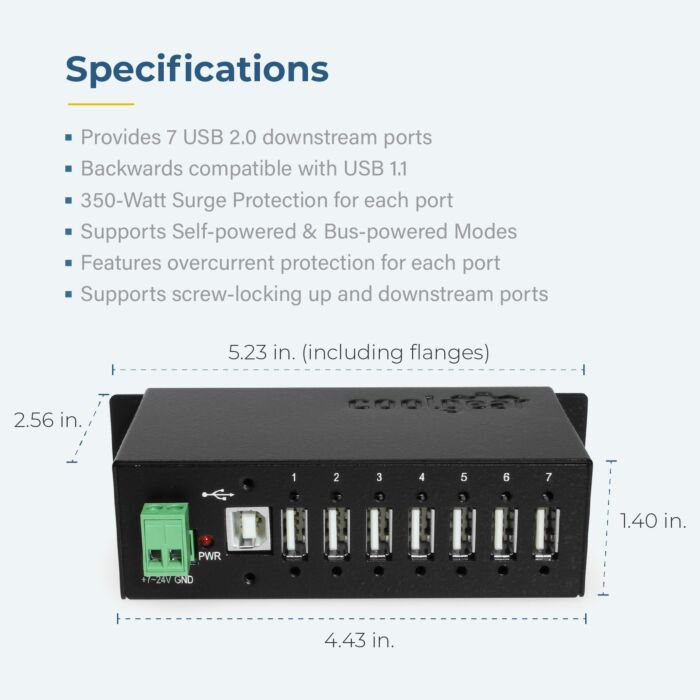

Form Factor

5.23(L)x2.42(W)x1.43(H)

(13.30x6.15x3.63 cm)

* Note: Power Adapter is Not Included, standard 7-26VDC Adapter will work.

Important Technical Information: Compliant with USB Specification Revision 2.0 Built-in NEC NEC uPD720113 USB2.0 Hub Controller
